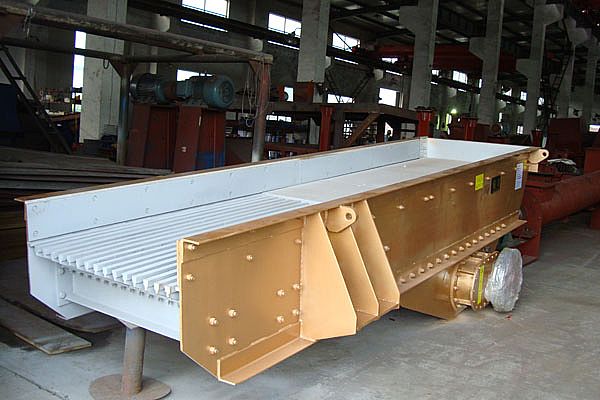

Vibrating Rod Feeder manufacture,exporter
Description
Vibrating rod feeder seller uses the structure of the double vibrator to ensure that the equipment can withstand the impact of large pieces of material falling, feeding capacity.
In the production process can be massive, granular material from the storage silo in the uniform, timed, continuous feeding device to receive, thereby preventing the receiving device due to uneven feeding and crash phenomenon, extending the equipment Service life.
Vibrating Rod Feeder can be divided into steel plate structure and grate structure, steel plate structure of the feeder used for sand and gravel material production line, all the materials evenly into the crushing equipment; grate structure of the feeder material can be coarse screening.So that the system in the preparation of more economical and reasonable, in the crushing and screening has been used as an essential equipment.
Feature
1.Can be designed according to user requirements, special manufacturing;
2.Can be easily implemented manually or automatically to control the amount of material;
3.Vibration stable, reliable, long life;
4.Can adjust the exciting force, can change and control the flow at any time, the adjustment is convenient and stable;
5.Vibration motor for the excitation source, low noise, low power consumption, good regulation, no red material phenomenon;
6.Simple structure, reliable operation, easy adjustment and installation;
7.Light weight, small size, easy maintenance, when the use of closed structure of the fuselage to prevent dust pollution.
Working principle
Vibrating rod feeder mainly consists of a pair of performance parameters exactly the same motor vibration feeder as the excitation source, when the two vibration motor with the same angular velocity for reverse operation, the eccentric block generated by the inertia force in a specific phase overlap or offset. Thereby generating a huge synthesis of exciting power, so that the body in the support spring for forced vibration, and vibration as a driving force to move the material in the trough on the slide and throwing movement, so that the material continued to move forward to achieve the purpose of feeding. When the material through the tank on the screen, the smaller material through the screen bar gap and fall, without going through the next crushing process, play the effect of screening.
Application
In the production process, can be massive, granular material from the storage silo in the uniform, timed, continuous feeding device to the receiving, in the gravel production line, crushing machinery for continuous and uniform feeding, and Material for coarse screening,widely used in metallurgy, coal, mineral processing, building materials, chemicals, abrasive and other industries broken, screening and joint equipment.
